Lenovo PB2-690 FRP Lock Remove Solution Without Box

Lenovo PB2-690 FRP Lock Remove Solution Without Box

This article will guide you how to delete the Google account Lenovo PB2-690 Remove factory reset protection byepass google account, factory reset using QFIL Tool method.

Requirement

1 OS  WIN XP / WIN7 32bit
2 Driver  LenovoUsbDriver_autorun_1.1.33_user.exe
3 Tool QPST.WIN.2.7 Installer-00429.7z
4 Cable Inbox USB cable

Download Lenovo PB2-690 FRP Removal File

How to Unlock Lenovo PB2-690 with “QFIL”  Tool:

1.Open “QFIL”  Tool
2.Extract “PB2-690_FRP.zip” to get folder “PB2-690_FRP”.
3.Choose image files from folder “PB2-690_FRP” for flashing

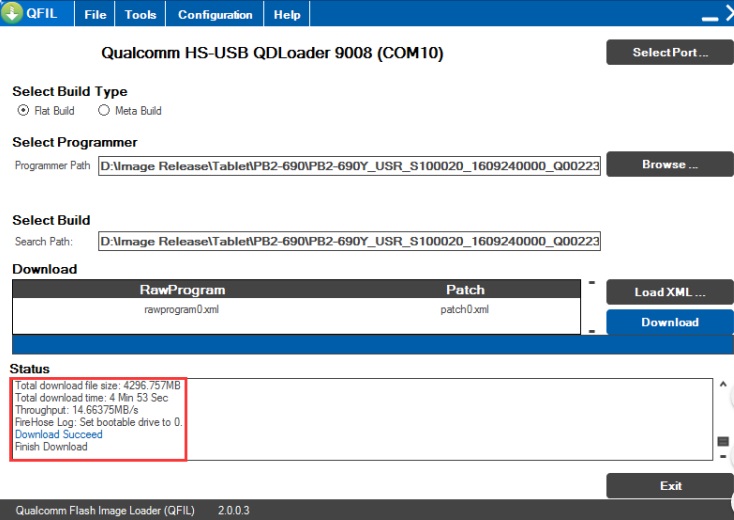

4.Setting as below:
Build Type: Flat Build
Programmer Path: select the below file from image package. Load XML: select the responding rawprogram0_wipe_frp.x ml and patch0.xml files.

5.Power off device, press down Volume UP Key and then connect USB
cable with PC, release key after vibrating. The device get into QDLoader 9008 mode
6. Click “Download” button to start image flashing until downloading finished.

Country Code Setting
The last step of flashing is set country code for the device. (Important) Country code setting instruction can be found via the below path in Knowledge Base of Lenovo Smart Tool : /MBG product/MBG Tablet/Product technical materials/PB2-690/2_Tools&SOP/3_Country Code Setting/
